Product Description
Off-grid solar energy systems are also called stand-alone solar systems. It does not connect with Grid or called Utility. It is very popular and suitable for remote areas where there is no public power or Public power is instable.
It can be for Home applications, Commercial applications and Industrial applications.
The off-grid solar energy system can be 1kW/2kW/3kW/5kW/10kW/12kW/16kW/20kW/24kW/30kW/50kW/80kW/100kW/120kW/150kW/200kW/ Customized off-gid power system

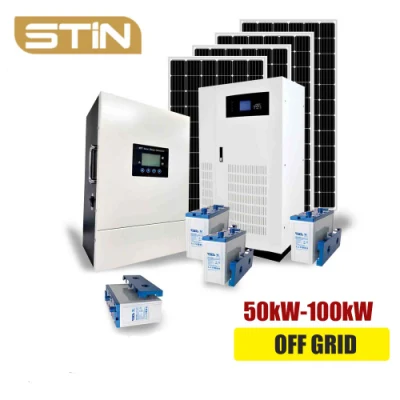

| STIN-50kW OFF-GRID SOLAR PHOTOVOLTAIC POWER SYSTEM | |||||
| No | Name | Specification | Quantity | Remark | |

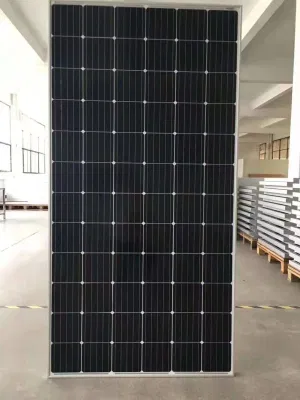

| 1 | mono | 380W | 90 | grade A cells,10pcs in one string and 9strings in paralle1 | |

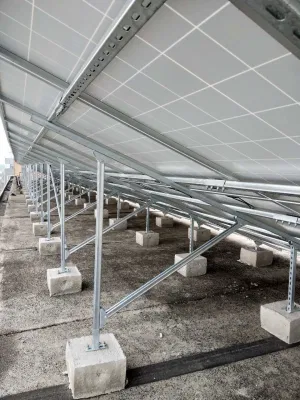

| 2 | Solar panel bracket | C-shaped steel | 1 | Ground type | |
| 3 | PV combiner box | 3 inputs, 1 output | 1 | waterproof, lightning protection, with DC breaker and fuse | |

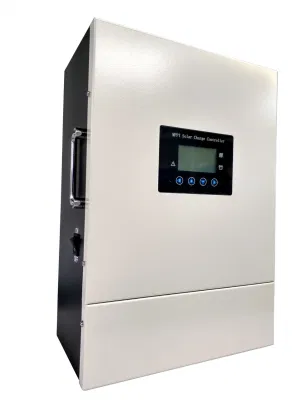

| 4 | MPPT charging controller | 220V/150A | 1 | 3PV input ports, 50A/port | |

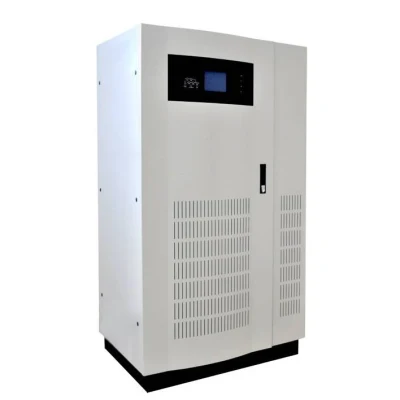

| 5 | Off grid inverter three phase | Pure sine wave, 50KW/220V | 1 | power frequency inverter;output:380VAC/50HZ ;(each phase can run 100% unbalanced loads with 220V50HZ output, the maximum load capacity for each phase is 16.7KW) | |

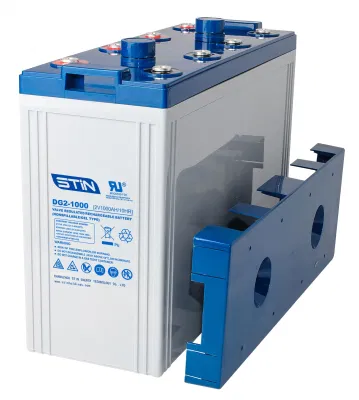

| 6 | Gel battery (deep cycle) | 2V800AH | 110 | 110pcs 2v800ah in one string, including cables and battery rack | |
| 7 | accessories | Battery distribution box(with switch and fuse) | 1 | It is for DC part | |
| MC4 connector | 10 | ||||
| PV cables(solar panel to PV combiner box) | 4mm2 | 300 | |||
| BVR cables(PV combiner box to MPPT controller) | 10mm2 | 100 | |||
| BVR cables(battery to distribution box) | 35mm2*2 | 20 | |||
| BVR cables(inverter to distribution box) | 35mm2*2 | 20 | |||
| BVR cables (MPPT controller to distribution box) | 50mm2 | 20 | |||
| STIN-60kW OFF-GRID SOLAR PHOTOVOLTAIC POWER SYSTEM | |||||
| No | Name | Specification | Quantity | Remark | |
| 1 | mono | 380W | 112 | grade A cells,14pcs in one string and 8strings in paralle1 | |
| 2 | Solar panel bracket | C-shaped steel | 1 | Ground type | |
| 3 | PV combiner box | 4 inputs, 1 output | 2 | waterproof, lightning protection, with DC breaker and fuse | |
| 4 | MPPT charging controller | 360V/60A | 2 | ||
| 5 | Off grid inverter three phase | Pure sine wave, 60KW/360V | 1 | power frequency inverter;output:380VAC/50HZ ;(each phase can run 100% unbalanced loads with 220V50HZ output, the maximum load capacity for each phase is 20KW) | |
| 6 | Gel battery (deep cycle) | 2V600AH | 180 | 180pcs 2v600ah in one string, including cables and battery rack | |
| 7 | accessories | Battery distribution box(with switch and fuse) | 1 | It is for DC part | |
| MC4 connector | 10 | ||||
| PV cables(solar panel to PV combiner box) | 4mm2 | 300 | |||
| BVR cables(PV combiner box to MPPT controller) | 10mm2 | 100 | |||
| BVR cables(battery to distribution box) | 25mm2*2 | 20 | |||
| BVR cables(inverter to distribution box) | 70mm2 | 20 | |||
| BVR cables (MPPT controller to distribution box) | 16mm2 | 40 | |||
| STIN-80kW OFF-GRID SOLAR PHOTOVOLTAIC POWER SYSTEM | |||||
| No | Name | Specification | Quantity | Remark | |
| 1 | mono | 380W | 150 | grade A cells,15pcs in one string and 10 strings in paralle1 | |
| 2 | Solar panel bracket | C-shaped steel | 1 | Ground type | |
| 3 | PV combiner box | 5 inputs, 1 output | 2 | waterproof, lightning protection, with DC breaker and fuse | |
| 4 | MPPT charging controller | 360V/80A | 2 | ||
| 5 | Off grid inverter three phase | Pure sine wave, 80KW/360V | 1 | power frequency inverter;output:380VAC/50HZ ;(each phase can run 100% unbalanced loads with 220V50HZ output, the maximum load capacity for each phase is 26.7KW) | |
| 6 | Gel battery (deep cycle) | 2V800AH | 180 | 180pcs 2v800ah in one string, including cables and battery rack | |
| 7 | accessories | Battery distribution box(with switch and fuse) | 1 | It is for DC part | |
| MC4 connector | 15 | ||||
| PV cables(solar panel to PV combiner box) | 4mm2 | 300 | |||
| BVR cables(PV combiner box to MPPT controller) | 10mm2 | 100 | |||
| BVR cables(battery to distribution box) | 35mm2*2 | 20 | |||
| BVR cables(inverter to distribution box) | 35mm2*2 | 20 | |||
| BVR cables (MPPT controller to distribution box) | 25mm2 | 40 | |||
| STIN-80kW OFF-GRID SOLAR PHOTOVOLTAIC POWER SYSTEM | |||||
| No | Name | Specification | Quantity | Remark | |
| 1 | mono | 380W | 180 | grade A cells,15pcs in one string and 12strings in paralle1 | |
| 2 | Solar panel bracket | C-shaped steel | 1 | Ground type | |
| 3 | PV combiner box | 6 inputs, 1 output | 2 | waterproof, lightning protection, with DC breaker and fuse | |
| 4 | MPPT charging controller | 360V/100A | 2 | ||
| 5 | Off grid inverter three phase | Pure sine wave, 100KW/360V | 1 | power frequency inverter;output:380VAC/50HZ ;(each phase can run 100% unbalanced loads with 220V50HZ output, the maximum load capacity for each phase is 33.3KW) | |
| 6 | Gel battery (deep cycle) | 2V1000AH | 180 | 180pcs 2v1000ah in one string, including cables and battery rack | |
| 7 | accessories | Battery distribution box(with switch and fuse) | 1 | It is for DC part | |
| MC4 connector | 10 | ||||
| PV cables(solar panel to PV combiner box) | 4mm2 | 300 | |||
| BVR cables(PV combiner box to MPPT controller) | 16mm2 | 100 | |||
| BVR cables(battery to distribution box) | 50mm2*2 | 20 | |||
| BVR cables(inverter to distribution box) | 50mm2*2 | 20 | |||
| BVR cables (MPPT controller to distribution box) | 35mm2 | 40 | |||
