Basic Info.
Model NO.
SAS3-8KW-HY
Load Power (W)
3kw, 8kw, 6kw, 5kw, 10kw, Others
Work Time (H)
24 Hours
Function
Power Support
Solar Panel
Mono/Poly 158.75/166/182/210mm
Output Frequency
50Hz/60Hz
Battery Type
Lead Acid/Lithium
Transport Package
Wodden Pallet and Carton Box
Specification
solar panel, inverter, bracket, etc
Trademark
Sail Solar
Origin
Anhui, China
HS Code
8501722000
Production Capacity
1000 Piece/Pieces Per Month
Product Description

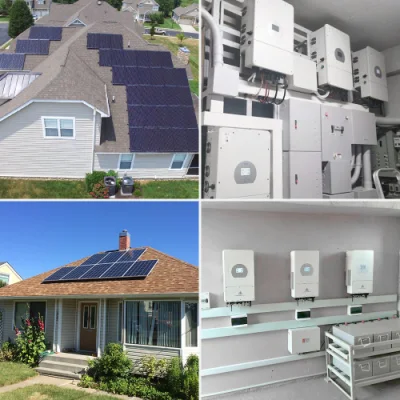

HYBRID SOLAR SYSTEM
Hybrid solar system is a solar system, suitable for a place where is no grid network or grid power is not stable. This solar can be described as off-grid solar system with utility backup power, or grid-tied solar system with extra battery storage.
System Connection
| Residential Hybrid Solar System | |||||
| Model | SAS3KW-HY | SAS5KW-HY | SAS8KW-HY | SAS10KW-HY | SAS12KW-HY |
| 550W Solar Panel | 6 pieces | 9 pieces | 11 pieces | 18 pieces | 22 pieces |
| Hybrid Storage Inverter | 3KW | 5KW | 8KW | 10KW | 12KW |
| Lithium Battery | 5.12KWH | 5.12KWH | 5.12KWH | 5.12KWH | 5.12KWH |
| DC Cable 4mm2 | 100 Meters | 100 Meters | 200 Meters | 200 Meters | 200 Meters |
| MC4 Connector(Pair) | 10 Pairs | 10 Pairs | 10 Pairs | 10 Pairs | 10 Pairs |
| Mounting System | Customized for Rooftop or Ground | ||||
| Optional Accessories | Lighting Protection/Grounding Device Accessories AC/DC Combiner Box AC Cable Smart Meter | ||||

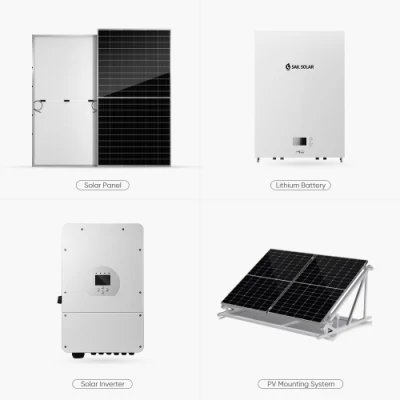

SOLAR PANEL
>PERC/Bifacial PV Moduels
>Mono/Poly/black etc all types Panels
>Highest quality with full certificates
>PID Resistant,High salt and ammonia resistance
>25 years warranty
MOUNTING STRUCTURE
>Ground Solar Mounting System
>Residential Roof(Pitched Roof)
>Car Parking Solar Mounting System
>Vertical wall solar mounting system
>Commercial Roof(Flat roof&workshop roof)
>Residential Roof(Pitched Roof)
>Car Parking Solar Mounting System
>Vertical wall solar mounting system
>Commercial Roof(Flat roof&workshop roof)

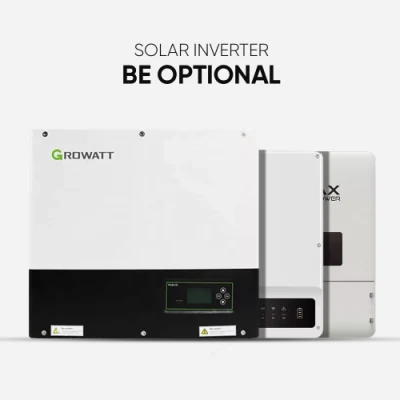

VARIOUS HYBRID STORAGE INVERTER
>All in one hybrid inverter
>Built-in MPPT solar charge controller
>Parallel operetion with up to multiple units
>Selectable input voltage range for home appliance
>Parallel operetion with up to multiple units
>Selectable input voltage range for home appliance
LITHUIM BATTERY
>Lifepo4 battery cells
>Flexible capacity options, 5kwh~20kwh
>EU, America market standard
>Built-in BMS, connect in parallel
>More than 6000 times cycle
>Flexible capacity options, 5kwh~20kwh
>EU, America market standard
>Built-in BMS, connect in parallel
>More than 6000 times cycle
PV COMBINER BOX
>Customized PV combiner box for solar panels connection
>Anti-Reverse diode/DC circuit breaker
>Anti-Reverse diode/DC circuit breaker
/DC fuse/Surge protection device Included
>Lighting Protection
>IP65 Waterproof
>Applicable for outdoor PV systems
>Lighting Protection
>IP65 Waterproof
>Applicable for outdoor PV systems
AC CABLE
>AC Cable
>AC Breaker
>PV Connector
>AC/DC Combine box
>PV Cable 4mm2 6mm2
>AC/DC Combine box
>PV Cable 4mm2 6mm2
DC lSOLATING SWITCH
>Rated Voltage:1000 VDC to 1200 VDC
>Rated Current:10A/16A/20A/25A/32A
>IP66 Waterproof degree
>Certificates:CE/CB/TUV/IEC/SAA
>Rated Current:10A/16A/20A/25A/32A
>IP66 Waterproof degree
>Certificates:CE/CB/TUV/IEC/SAA
PV TOOLS
>Disassembly tool
>MC3 MC4 crimper
>Wire cable cutter&stripper
>MC4 connectors assembly
>Wire cable cutter&stripper
>MC4 connectors assembly
